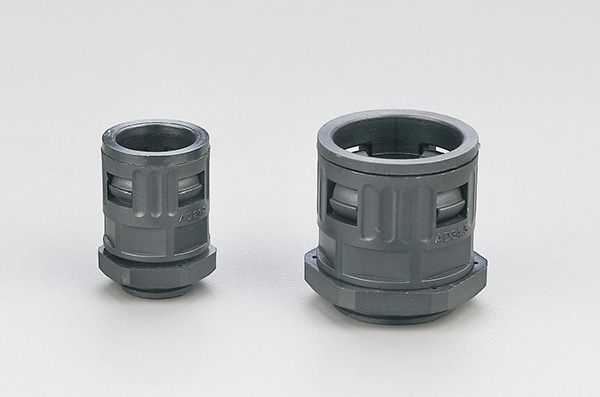

波纹管接头
产品概述：
◆材质：尼龙( PA6 )。
◆环境温度：-40℃~+115℃短时至+150℃
◆供货颜色：黑色和灰色，其它颜色可询问。
◆产品特性：接头主体、咬合套等配件合理的设计，保证了接头和软管之间能紧密装配；通过压紧咬合套可以拆卸接头；在狭窄的工况下，请选择外径小的接头和软管； 接头能有效防止油、酸等溶剂及灰尘的进入；不含卤素、硅、镉；黑色耐紫外线。
◆应用领域：对工业电气装置进行绝缘、隔热、隔离保护。

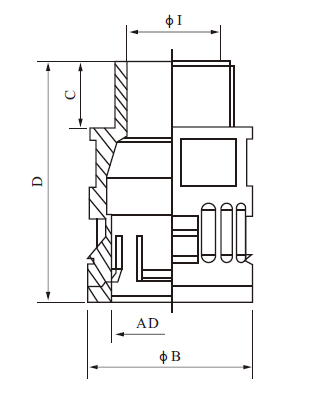

外形尺寸：
技术参数：
| 编 号 Item NO. |
适配软管外径 Applicable tubing Outer φ |
螺纹长度 Length of thread C mm |
孔径 Smallest inner φI mm |
外径 |
整体长度 Total length D mm |
| M10×1.5 | AD10.0 | 12.0 | 6.0 | 17.0 | 35.0 |
| M12×1.5 | AD10.0 | 12.0 | 7.0 | 17.0 | 35.0 |
| M16×1.5 | AD13.0 | 12.0 | 7.0 | 20.0 | 37.0 |
| M16×1.5 | AD13.0 | 12.0 | 10.0 | 20.0 | 37.0 |
| M16×1.5 | AD15.8 | 12.0 | 11.5 | 23.0 | 39.5 |
| M18×1.5 | AD15.8 | 12.0 | 12.0 | 23.0 | 39.5 |
| M20×1.5 | AD18.5 | 13.0 | 14.5 | 26.0 | 42.0 |
| M20×1.5 | AD21.2 | 13.0 | 15.5 | 29.5 | 45.0 |
| M22×1.5 | AD21.2 | 13.0 | 17.0 | 29.5 | 45.0 |
| M24×1.5 | AD21.2 | 13.0 | 17.0 | 29.5 | 45.0 |
| M25×1.5 | AD21.2 | 13.0 | 17.0 | 29.5 | 45.0 |
| M25×1.5 | AD25.5 | 13.0 | 20.5 | 34.0 | 46.5 |
| M25×1.5 | AD28.5 | 13.0 | 20.5 | 37.0 | 47.0 |
| M27×2.0 | AD28.5 | 13.0 | 22.5 | 37.0 | 47.0 |
| M30×1.5 | AD28.5 | 13.0 | 23.5 | 37.0 | 47.0 |
| M32×1.5 | AD28.5 | 13.0 | 23.5 | 37.0 | 47.0 |
| M32×1.5 | AD34.5 | 15.0 | 26.0 | 44.0 | 51.0 |
| M33×2.0 | AD34.5 | 15.0 | 26.0 | 44.0 | 51.0 |
| M36×2.0 | AD34.5 | 15.0 | 30.0 | 44.0 | 51.0 |
| M40×1.5 | AD34.5 | 15.0 | 30.0 | 44.0 | 51.0 |
| M40×1.5 | AD42.5 | 15.0 | 33.0 | 52.0 | 54.0 |
| M42×2.0 | AD42.5 | 15.0 | 35.0 | 52.0 | 54.0 |
| M48×2.0 | AD42.5 | 15.0 | 36.5 | 52.0 | 54.0 |
| M50×1.5 | AD42.5 | 15.0 | 36.5 | 52.0 | 54.0 |
| M50×1.5 | AD54.5 | 16.0 | 43.0 | 64.0 | 55.0 |
| M56×2.0 | AD54.5 | 16.0 | 48.0 | 64.0 | 55.0 |
| M60×2.0 | AD54.5 | 16.0 | 48.0 | 64.0 | 55.0 |
| M63×1.5 | AD54.5 | 16.0 | 48.0 | 64.0 | 55.0 |
| PG7 | AD10.0 | 12.0 | 7.0 | 17.0 | 35.0 |
| PG9 | AD13.0 | 12.0 | 10.0 | 20.0 | 37.0 |
| PG11 | AD15.8 | 12.0 | 12.0 | 23.0 | 39.0 |
| PG13.5 | AD18.5 | 13.0 | 14.5 | 26.0 | 42.0 |
| PG16 | AD21.2 | 13.0 | 17.0 | 29.5 | 45.0 |
| PG21 | AD25.5 | 13.0 | 21.0 | 34.0 | 46.5 |
| PG21 | AD28.5 | 13.0 | 23.5 | 37.0 | 47.0 |
| PG29 | AD34.5 | 15.0 | 30.0 | 44.0 | 51.0 |
| PG36 | AD42.5 | 15.0 | 36.5 | 52.0 | 54.0 |
| PG48 | AD54.5 | 16.0 | 48.0 | 64.0 | 55.0 |
